Srne Us Version on Off Grid Invertor Split Phase 120/240 Vac Hybrid Solar Inverter 8kw 10kw 12kw Hybrids Solar Inverters
₦2,272,212.60 – ₦2,567,911.50
SPECIFICATIONS
Application: Solar Power System Home
Battery Voltage: 12vdc/24vdc/48vdc
Battery type: Lead-acid
Brand Name: Grandtech/Srne
Certificate: CE,ISO,UN38.3,ROHS,FCC&ETL,PSE
Input Voltage: 90-280VAC or70-280VAC
Inverter Efficiency: >95%
Keyword: Hybrid Solar Panel Inverter
MPPT voltage range: 90VDC~450VDC
Model Number: GTHR12048PUH
Output Current: 31.3A
Output Frequency: 50/60Hz
Output Type: Single Phase,Triple,Multiple
Output Voltage: 195.5~253VAC
Place of Origin: Guangdong, China
Product name: Off-grid Hybrid Inverter
Protection: IP65
Size: 80*50*60cm
Type: DC/AC Inverters,AC to AC
Warranty: 5 Years
Weight: 52KG
MODEL | SEI-8K-UP | SEI-10K-UP | SEI-12K-UP | Can Be Set | ||||
INVERTER OUTPUT | ||||||||
Rated Output Power | 8,800W | 10,000W | 12,000W | |||||
Max.Peak Power | 17,600VA | 20,000VA | 24,000VA | |||||
Rated Output Voltage | 120/240Vac,single-phase/split-phase/three-phase(parallel) | √ | ||||||
Load Capacity of Motors | 5HP | 6HP | ||||||
Rated AC Frequency | 50/60Hz | |||||||
BATTERY | ||||||||
Battery Type | Lead-acid/Li-ion /User-defined | √ | ||||||
Rated Battery Voltage | 48V | |||||||
Max.PV Charging Current | 200A | √ | ||||||
Max.Mains Charging Current | 120A | √ | ||||||
Max.Alternator Charging Current | 60A | |||||||
Max.Hybrid Charging Current | 200A | √ | ||||||
PV INPUT | ||||||||
Num.of MPPT | 2 | |||||||
Max.PV Array Power | 5,500W+5,500W 6,600W+6,600W | |||||||
Max.Input Current | 25A+25A | |||||||
Max.Open-circuit Voltage | 550Vdc+550Vdc | |||||||
MPPT Operating Voltage Range | 125～450Vdc | |||||||
MAINS/GENERATOR INPUT | ||||||||
Input Voltage Range | 90～140Vac | √ | ||||||
Frequency Range | 50/60Hz | |||||||
GENERAL | ||||||||
Num.of Parallel | 1~6 units | |||||||

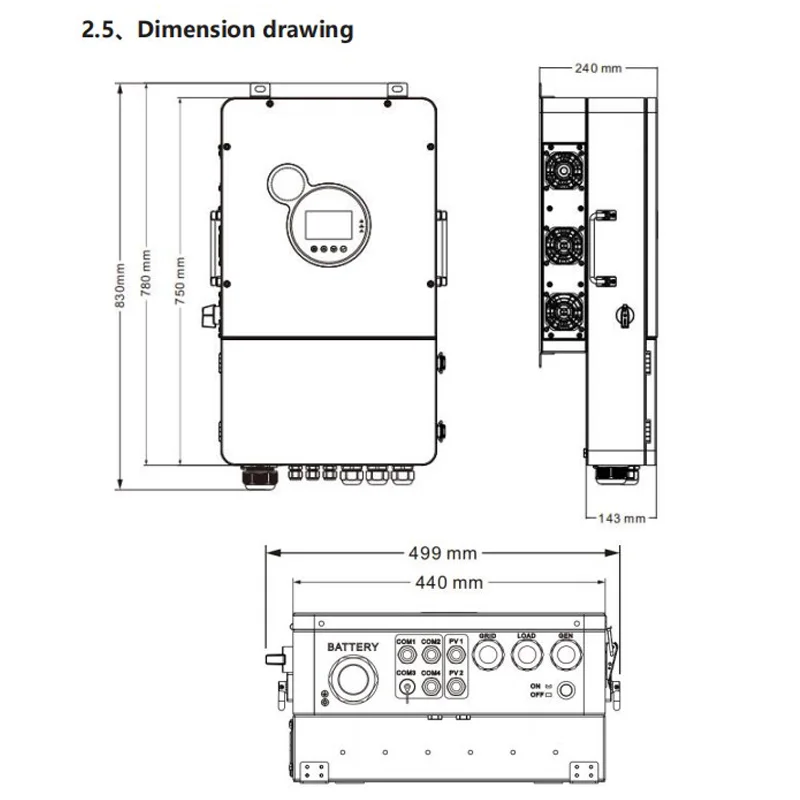

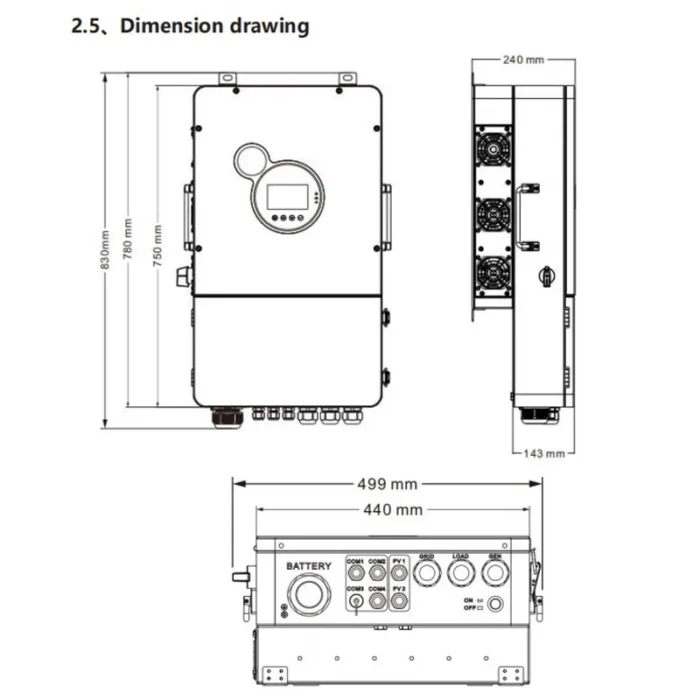

Dimensions | 750*440*240mm(2.46*1.44*0.79ft) | |||||||
Weight | 42kg(92.59Ib) | |||||||
Protection Degree | IP65 | |||||||
Operating Temperature Range | -25~60℃,>45℃ derated | |||||||
Cooling Method | Intelligent air-cooling | |||||||
Warranty | 5 years | |||||||
COMMUNICATION | ||||||||
Embedded Interfaces | RS485/CAN/USB/Dry contact | √ | ||||||
External Modules (optional) | Wi-Fi/GPRS | √ | ||||||
CERTIFICATION | ||||||||
UL1741&IEEE1547.1-2020,CEC,RULE21,HECO,FCC15classB,RoHs | ||||||||
Our standard lead time is 30–45 days, depending on the model and order quantity. We confirm the delivery schedule before production begins.
———————————————————————————————————————————-
❓2. Do you provide international shipping?
Yes. We offer shipping under EXW, FOB, CIF, and DDP terms by sea, air, or express (DHL, UPS, FedEx). You're welcome to use your own forwarder.
———————————————————————————————————————————-
❓3. How do you ensure product quality?
All inverters go through 100% full-load testing, high-temperature aging, and final inspection. Our factory is ISO 9001 certified and strictly controls quality at every stage.
———————————————————————————————————————————-
❓4. What warranty and after-sales service do you offer?
We provide a 5-year limited warranty for quality-related issues. For warranty cases, we offer free parts, fast delivery, and
remote technical support.
Absolutely. With 20 years of export experience, we welcome long-term cooperation and offer exclusive regional distribution, stable supply, and marketing support.
| Weight | N/A |
|---|---|
| Application |
Hybrid Solar System |
| Output Power |
10KW ,12KW ,8kw |
| Inverter Type |
String Inverter |
