Spray Dryer Low Temperature Spray Dryer High Speed Spray Dryer Cad Experiment Small Vacuum Centrifugal Spray Dryer
₦1,945,926.46 – ₦4,540,495.07
SPECIFICATIONS
Brand Name: NoEnName_Null
Hign-concerned Chemical: None
Origin: Mainland China,Mainland China
Overall dimensions: 650*800*1300
Product Scope of Application: 2000
Type: YM-015
weight: 120
working voltage: 220
Purchase Notes
1.Dear customer, in order for you to use the product normally after it arrives, please contact us
(store customer service) According to your work process requirements. Our customer
service will provide engineers to match the suitable equipment for you.
2.The price only for reference, the specific cost based on your requirements and the destination port,
please contact the customer service for more product details and quotations!
3.We ship the goods by sea !!
4.Door to door please leave message or whatsapp or email for price !!!
5.our compamy service whatsapp:+86 17203873696

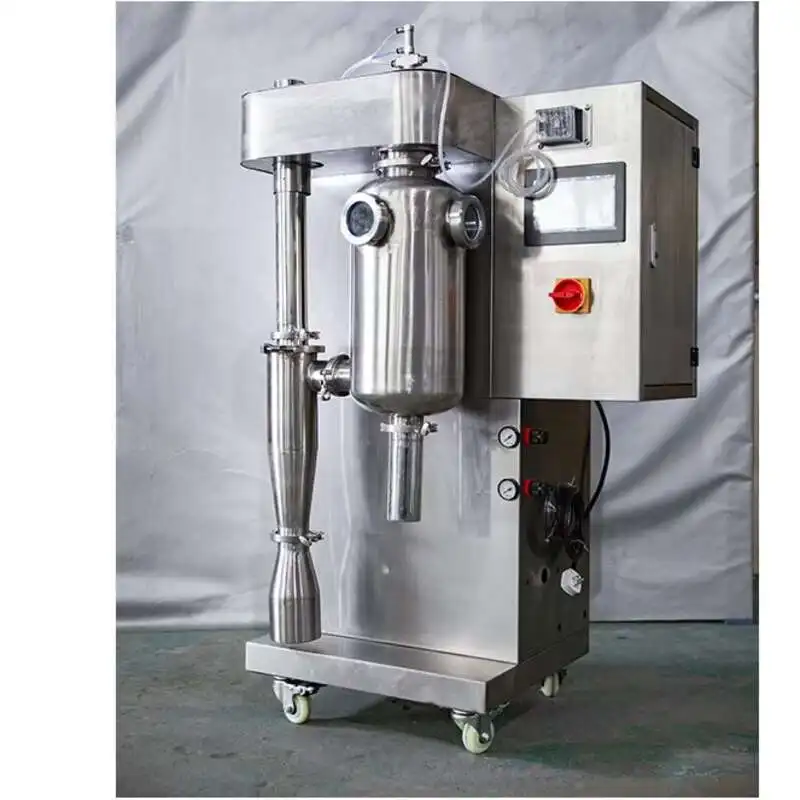

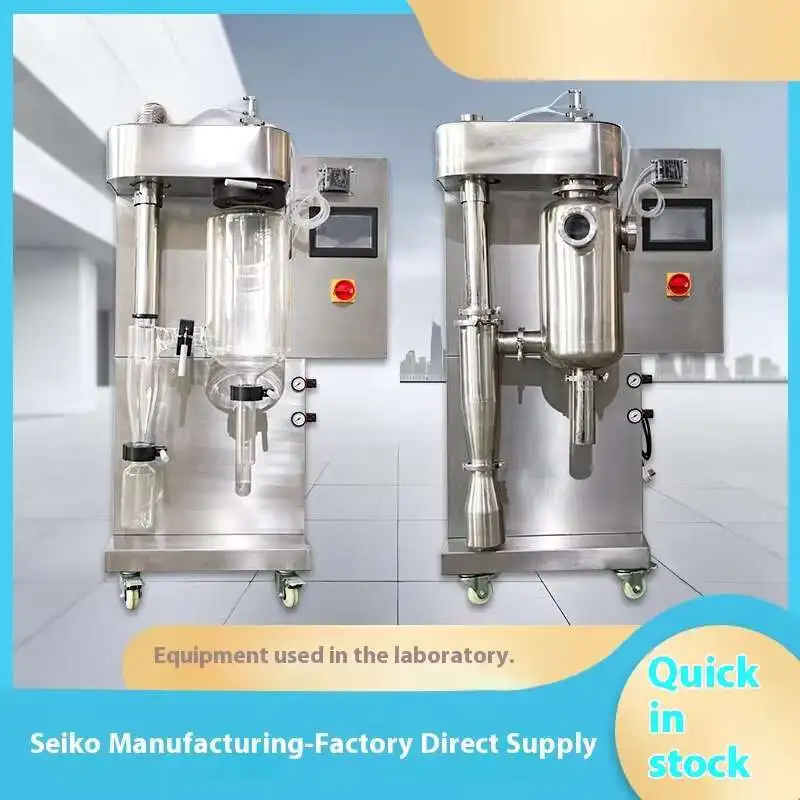

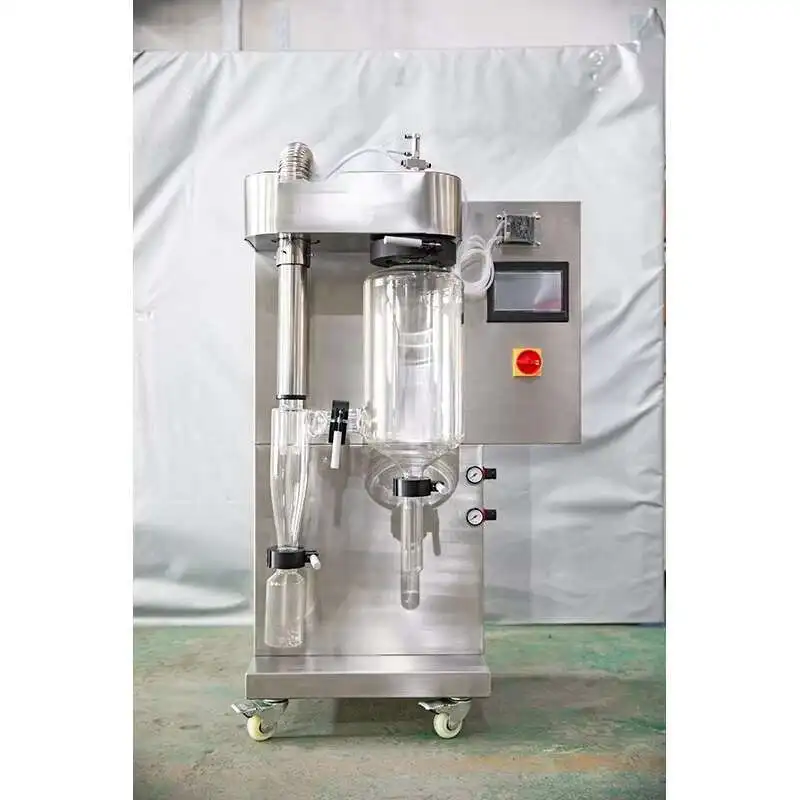

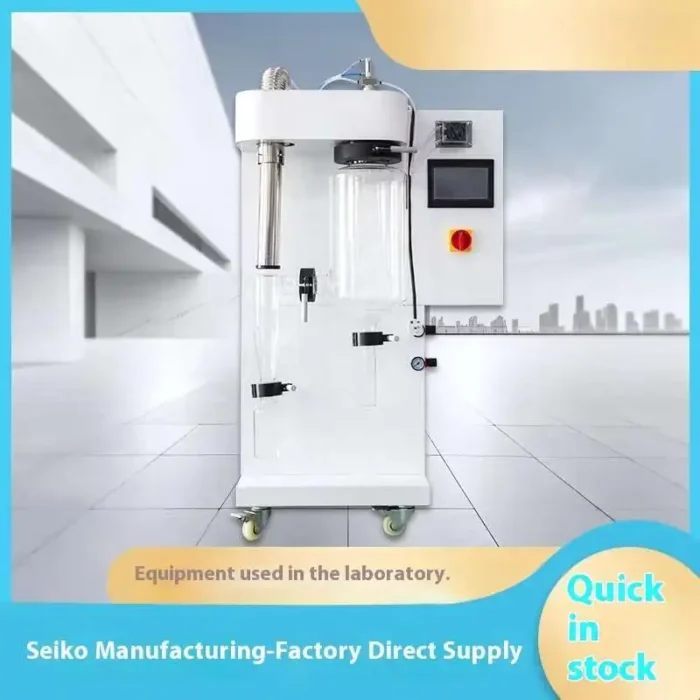

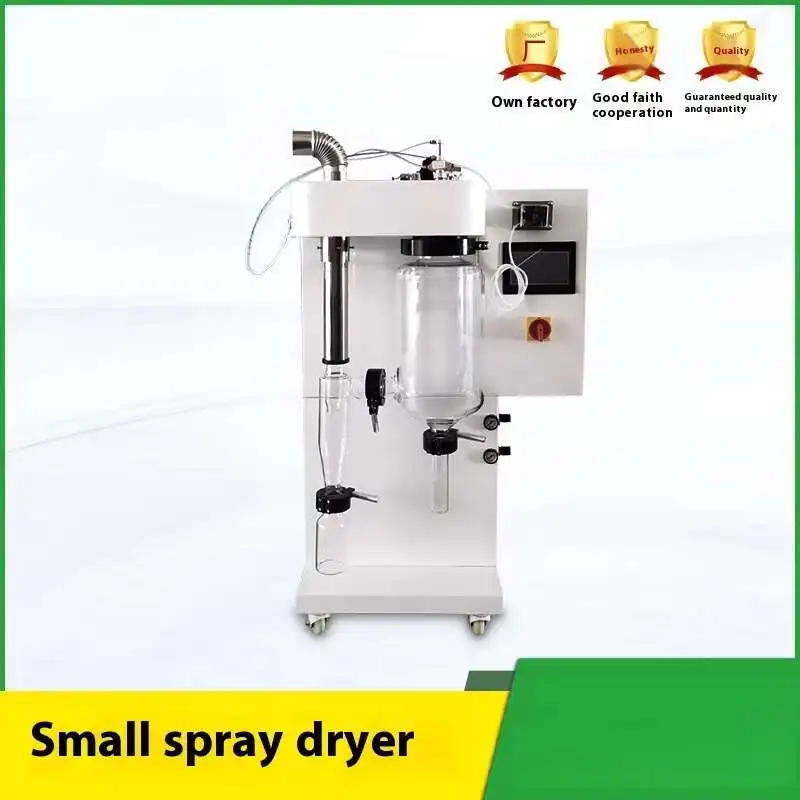

YM-015 mini laboratory spray dryer (small spray dryer) has a compact overall design, which can be placed in the
2、 Main features
316 material nozzle, high efficiency.
Color LCD touch screen parameter display: inlet temperature/outlet temperature/peristaltic pump
● Full automatic control: one button startup, after setting spray process parameters, the temperature reaches
● Manual control: If it is necessary to adjust the process parameters during the experiment, it can be easily
Equipped with a nozzle cleaner (through needle), it will automatically clear when the nozzle is blocked,
● Shutdown protection function: When shutting down, simply press the stop button, and the machine
● The spray, drying and collection system is made of transparent high-quality high borosilicate
Equipped with an oil-free air compressor, the particle size of the powder sprayed follows a normal
● Two fluid spray atomization structure, the whole machine is made of high-quality stainless steel
The design of dry temperature control adopts real-time PID constant temperature control technology,
In order to maintain the purity of the sample, an air inlet filter is equipped.
The feeding amount can be adjusted by the feeding peristaltic pump, and the small sample volume
For viscous materials, there is a nozzle cleaner (through needle) that automatically clears the nozzle
Innovative tower wall blowing device with higher material recovery rate.
● Unique protection function, the fan does not start, heating cannot start, and the fan air
| ◆ Inlet air temperature control: 30 ℃~300 ℃ |
| ◆ Air outlet temperature control: 30 ℃~140 ℃ |
| Evaporation water volume: 200mL/H~2000ml/h |
| ◆ Feeding method: peristaltic pump adjustment, feeding amount: 30-2000ml/h |
| ◆ Small amount of feed: 50mL |
| Average drying time: 1.0-1.5s |
| Dry air flux: air volume 0-330m3/h, air pressure 686Pa |
| Compressor: Dolphin oil-free air compressor, with good fluidity and very low noise. 0.55KW gas production rate 4.2m3/h, working pressure 2-5 bar |
| ◆ Shutdown protection function: When shutting down, simply press the stop button, and the machine will immediately stop running except for the fan, ensuring that the equipment will not burn out the heating part due to misoperation (forcibly shutting down the fan). |
| ◆ Overall power: 3.5KW/220V |
| ◆ Dimensions: 1300mm (height) × 650mm (length) × 800mm (width) |
| Color |
YM015 ,2 ,YM6000Y ,YM8000B |
|---|
